The sample is irradiated with soft x rays typically 13 kev and the emitted electrons are energy analyzed to provide a spectrum. Surface analysis x ray photoelectron spectroscopy figure 1 a schematic of the xps excitation process.

X Ray Photoelectron Spectroscopy Progress And Perspectives

X ray photoelectron spectroscopy xps is a quantitative spectroscopic technique that measures the elemental composition empirical formula chemical state and electronic of the elements that exist within a material xps requires ultra high vacuum uhv conditions.

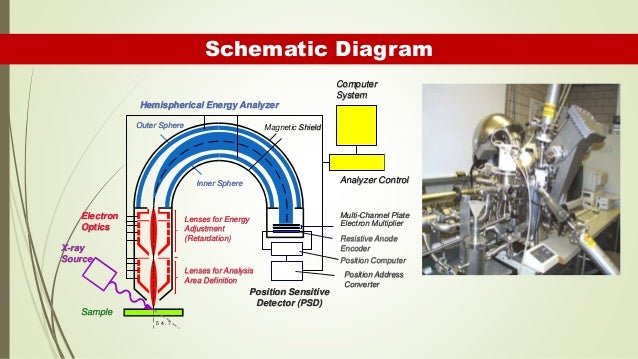

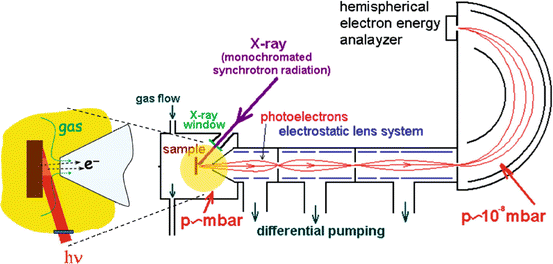

Schematic diagram x ray photoelectron spectroscopy. Xps is extremely good for surfaces. Uv photoelectron spectroscopy ups light of the energy of a uv photon is capable of providing outer shell electrons with enough energy to escape an atom or molecule. The samples studied are all solids of some type ranging from metals to frozen liquids.

Xps is a useful measurement technique because it not only shows what elements are within a film but also what other elements they are bonded to. X ray photoelectron spectroscopy xps is a surface sensitive quantitative spectroscopic technique that measures the elemental composition at the parts per thousand range empirical formula chemical state and electronic state of the elements that exist within a material. 492017 17 schematic diagram of xps.

X ray photoelectron spectroscopy is a powerful relevant and non destructive method for studying atoms molecules and surfaces 1. The figure shows the electron configuration of a ground state neon ne atom lower set of energy levels. A sample is irradiated by x ray beams which interact with the inner electron shell of atoms.

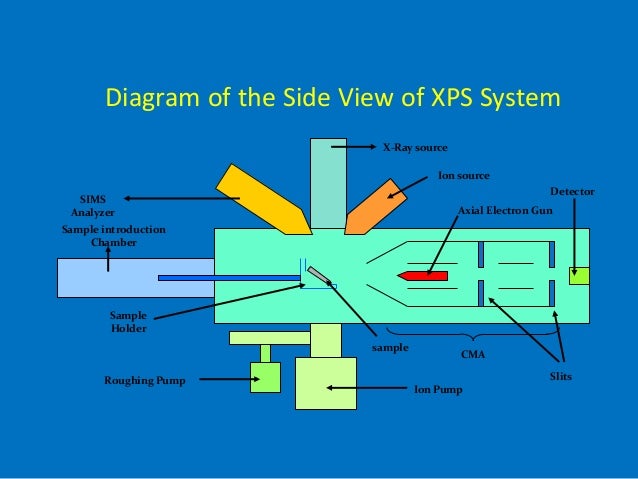

X ray photoelectron spectrometer diagram of the side view of xps system x ray source ion source axial electron gun detector cm a sample sims analyzer sample introduction chamber sample holder ion pump roughing pump slits. X ray photoelectron spectroscopy xps. X ray photoelectron spectroscopy xps uses soft x rays with a photon energy of 200 2000 ev to examine electrons in core levels.

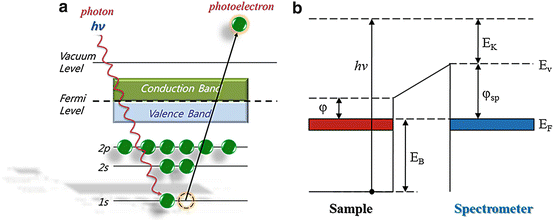

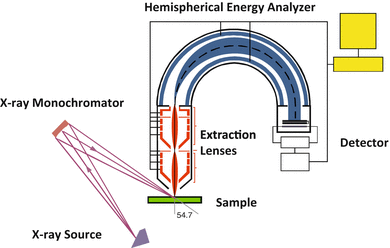

Esca also called x ray photoelectron spectroscopy xps is able to detect all elements except hydrogen. A diagram of a typical xps instrument was shown at the beginning in figure 1. B schematic representation of the electron energy levels of a f atom and the photoionization of a f 1s electron.

Electron spectroscopy for chemical analysis esca also known as x ray photoelectron spectroscopy xps is a widely used method for measuring the chemical composition of solid surfaces. However investigations are limited to atoms molecules and surfaces since low energy electrons limit the depth resolution resulting in three dimensional bulk state cannot be detected. Photoelectron spectroscopy xps principles and applications.

Photon energy of the x rays is transferred to an electron in the inner shell enabling it the photoelectron to escape from the sample surface. This is because the kinetic energy of the escaping photoelectrons limits the depth able to be probed. Photoelectron spectroscopy pes utilizes photo ionization and analysis of the kinetic energy distribution of the emitted photoelectrons to study the composition and electronic state of the surface region of a sample.
